Description

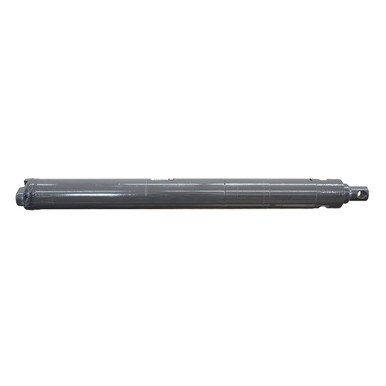

2.705″(70mm) x 26.75″(679mm) x 2.16″(55mm) HYDRAULIC CYLINDER
Unused old inventory. Agco CL643742CO, welded, single acting hydraulic cylinder.
| SPECIFICATIONS |
- Single Acting
- Bore x Stroke 2.705″(70mm) x 26.75″(679mm)
- Gland Retainer Round Wire Ring
- Pressure 2500 PSI max.
- Rod Dia. 2.16″(55mm)
|
- Ports M16 x 1.5
- Retracted Length 35.25″
- Gland Face to Rod Pin Center 2.125″
- Shpg. 64 lbs.
|
| END MOUNTINGS |
|
- Rod End Thru-Hole
- Width 1.375″
- Pin Center to Base End 0.779″
- Pin Hole 0.825″(20mm)
|
- Base End Mounting Plate
- Plate Thickness 0.755″
- Mounting Two 0.71″ holes on 4.78″ centers and Two M10-1.5 threaded holes on 1.715″ centers
|
