Description

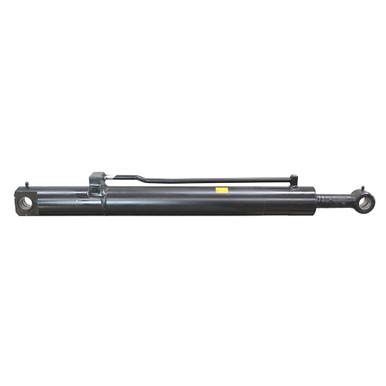

2.758″(70mm) x 19.25″(489mm) x 1.571″(40mm) HYDRAULIC CYLINDER
Unused old inventory. BOBCAT 6961684, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.758″(70mm) x 19.25″(489mm)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.571″(40mm)
- Rod Thickness 1.571″(40mm)
|
- Ports BSPP 1/4″-19
- Retracted Length 37.75″
- Gland Face to Rod Pin Center 5.875″
- Shpg. 75 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 1.976″
- Pin-Center-To-Tang-End 1.265″
- Pin Hole 1.378″(35mm)
|
- Base End Tang
- Width 1.976″
- Pin-Center-To-Tang-End 1.191″
- Pin Hole 1.378″(35mm)
|
