Description

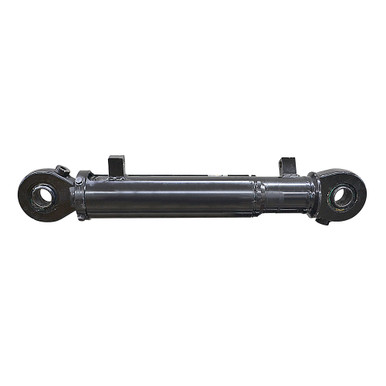

2.933″(75MM) x 13.25″(336MM) x 2.169″(55MM) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory, Fuchs Material 6502131000, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.933″(75MM) x 13.25″(336MM)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 2.169″(55MM)
|
- Ports M22 X 1.5
- Retracted Length 32.75″
- Gland Face to Rod Pin Center 9″
- Shpg. 156 lbs.
|
| END MOUNTINGS |
|
- Rod End Swivel Eye
- Width 1.994″
- Pin-Center-To-Swivel Eye-End 2.958″
- Swivel Eye Width 2.25″
- Pin Hole 1.969″(50MM)
|
- Base End Swivel Eye
- Width 1.982″
- Pin-Center-To-Swivel Eye-End 2.932″
- Swivel Eye Width 2.25″
- Pin Hole 1.969″(50MM)
|
