Description

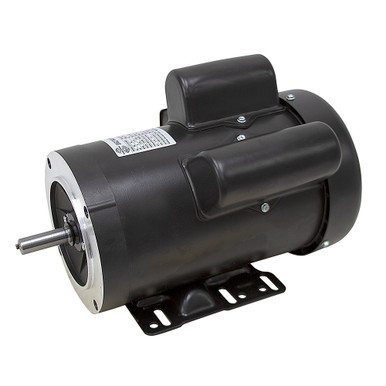

2 HP 1725 RPM 115/230 VOLT AC BASE AND FACE MOUNT MOTOR
Brand new, WORLDWIDE NT2-18-56CB, general purpose motor for use in blowers, pumps, conveyors, and many other diverse applications. Totally Enclosed Fan Cooled (TEFC) enclosures. Capacitor start/Capacitor run motor for reduced amperage and high torque.
SPECIFICATIONS
- Power 2 HP
- Voltage 115/230 AC
- Phase 1
- Frequency 60 Hz
- Amperage 19.6/9.8 Amps
- Speed 1725 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection None
- Enclosure TEFC
- Duty Continuous
- Frame 56HC
- Base Mount Six 1-1/4″ x 5/16″ elliptical slots on 2″ to 5″ x 4-7/8″ to 5-7/8″ centers
- Face Mount Four 3/8″-16 threaded holes on 5-7/8″ B.C., 4-1/2″ pilot
- Shaft 5/8″ dia. x 1-7/8″ overall length w/ 3/16″ wide x 1-3/4″ long keyway
- Size 13.5″ x 8.75″ x 8.75″
- Shpg. 50 lbs.
