Description

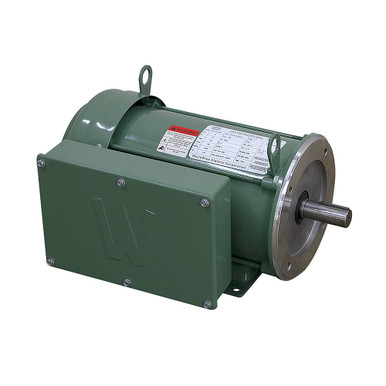

2 HP 1764 RPM MOTOR
Brand new, WORLDWIDE FD2-18-182TC, farm duty heavy duty motor for agricultural and other industrial use. Totally Enclosed Fan Cooled (TEFC) enclosures suitable for indoor or outdoor protection. Capacitor start/capacitor run motor for reduced amperage and high torque. Manual thermal overload protection.
SPECIFICATIONS
- Brand Worldwide
- Model Number FD2-18-182TC
- Power 2 HP
- Voltage 230 AC
- Phase 1
- Frequency 60 Hz
- Amperage 8.5 Amps
- Speed 1764 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection Manual
- Enclosure TEFC
- Duty Continuous
- Frame 182TC
- Base Mount Eight 3/8″ holes on 1″ to 4″ to 5″ x 7-1/2″ centers
- Face Mount Four 1/2″-13 TPI threaded holes in motor face on 7-1/4″ B.C., 5-3/4″ pilot
- Shaft 1-1/8″ dia. x 2-7/8″ overall length w/ 1/4″ wide x 1-3/4″ long keyway
- Size 18″ x 12.5″ x 10″
- Shpg. 124 lbs.
