Description
Returned Item: This motor was returned missing side cover. Sold as is.

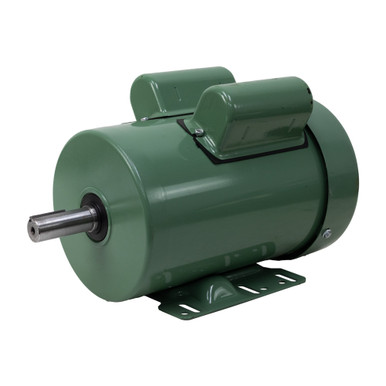

2 HP 1758 RPM 230 VAC BASE MOUNT MOTOR
WORLDWIDE FD2-18-145T, farm duty heavy duty motor for agricultural and other industrial use. Totally Enclosed Fan Cooled (TEFC) enclosures suitable for indoor or outdoor protection. Capacitor start/capacitor run motor for reduced amperage and high torque. Manual thermal overload protection.
SPECIFICATIONS
- Power 2 HP
- Voltage 230 AC
- Phase 1
- Frequency 60 Hz
- Amperage 7.8 Amps
- Speed 1758 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection Manual
- Enclosure TEFC
- Duty Continuous
- Frame 145T
- Base Mount Six 1-1/4″ x 5/16″ elliptical slots on 2″ to 5″ x 4-7/8″ to 5-7/8″ centers
- Shaft 7/8″ dia. x 2-1/2″ overall length w/ 3/16″ wide x 1-3/8″ long keyway
- Size 13-1/2″ x 9-1/2″ x 8-3/4″
- Shpg. 60 lbs.
