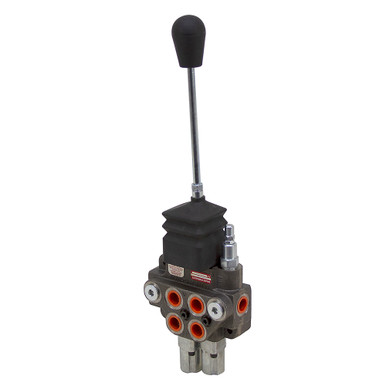

2 SPOOL JOYSTICK LOADER CONTROL VALVE
Brand new. BRAND Model LV22TSTKA2B. Compact two spool joystick valve for operating double acting cylinders. Ideal for use on front end loaders on small to medium sized tractors, lift trucks, and other mobile equipment requiring a compact valve. The two spools can be operated independently or simultaneously depending on handle movement. Second spool has float to allow free movement of cylinder. Open center. Optional conversion sleeve for power beyond or plug for closed center operation sold separately.
SPECIFICATIONS
- Manufacturer BRAND
- Model Number LV22TSTKA2B
- Open Center
- Spools Two
- Flow 10 GPM
- Pressure 3000 PSI
- Relief Valve Adjustable from 1200-3000 PSI set at 2000
- In/Out Ports SAE 8
- Work Ports SAE 8
- Size 5.5″ x 2.5″ x 18.75″
- Shpg. 15 lbs.
Spool Details:
Spool 1 Double acting spring centered
Spool 2 Double acting spring centered with detented float position.
