Description

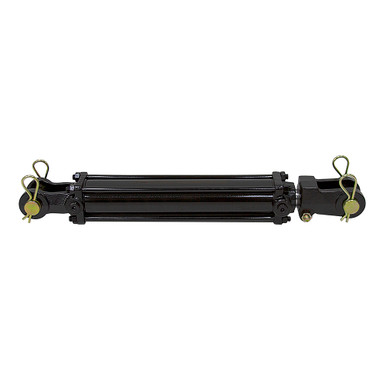

2″ x 10″ x 1.125″ HYD CYL
New. BAILEY 322-347, tie-rod, double acting hydraulic cylinder. Designed for use in tilt deck trailers. Cylinder has a 0.063″ diameter orifice in piston to allow oil to flow between the extend and retract sides of the piston.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2″ x 10″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.125″
|
- Ports SAE 6
- Retracted Length 20.25″
- Gland Face to Rod Pin Center 3.4″
- Shpg. 23 lbs.
|
| END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 2.5″
- Inside Width 1.17″
- Throat Depth 2.13″
- Pin Hole 1″
|
- Base End Clevis
- Outside Width 2.5″
- Inside Width 1.17″
- Throat Depth 2.06″
- Pin Hole 1″
|
