Description

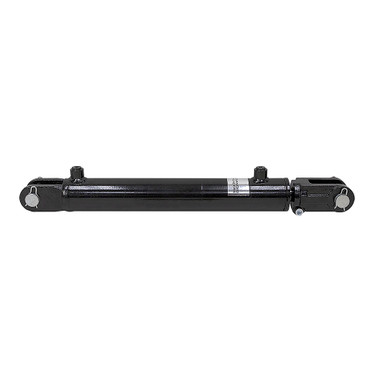

2″ x 12″ x 1.125″ DOUBLE ACTING HYDRAULIC CYLINDER
New, Advanced Cylinders LLC 2012TG-ORB, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2″ x 12″
- Gland Retainer Threaded in
- Pressure 3000 PSI max.
- Rod Dia. 1.125″
|
- Ports SAE 6
- Retracted Length 22.25″
- Gland Face to Rod Pin Center 3.625″
- Shpg. 24 lbs.
|
| END MOUNTINGS |
- Rod End Clevis
- Outside Width 2.53″
- Inside Width 1.154″
- Throat Depth 3.215″
- Pin Hole 1″
|
- Base End Clevis
- Outside Width 2.123″
- Inside Width 1.135″
- Throat Depth 3.14″
- Pin Hole 1″
|
