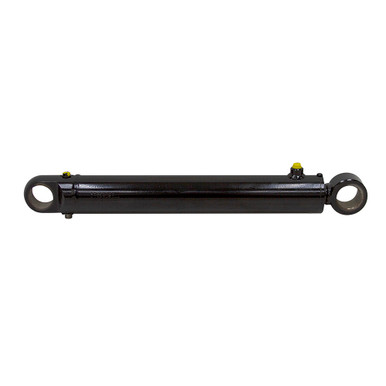

2″ x 12″ x 1.25″ HYDRAULIC CYLINDER
New, FISHER A649CY20, welded, double acting hydraulic cylinder. Cylinder has a five pin plug for an internal position sensor.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2″ x 12″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.25″
|
- Ports SAE 4
- Retracted Length 19.125″
- Gland Face to Rod Pin Center 1.625″
- Shpg. 18 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 1.391″
- Pin-Center-To-Tang-End 1.25″
- Pin Hole 1.5″
|
- Base End Tang
- Width 1.363″
- Pin-Center-To-Tang-End 1.25″
- Pin Hole 1.5″
|
