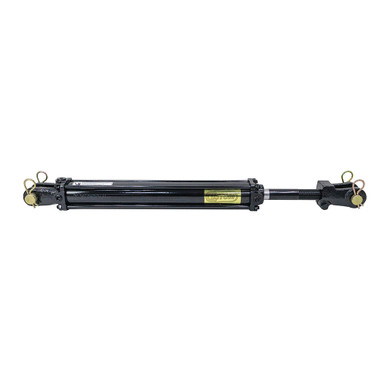

2″ x 16″ x 1.125″ DOUBLE ACTING HYDRAULIC CYLINDER
New, Hydro Custom TR2.5-2016-ASAE-LA4 tie-rod double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2″ x 16″
- Gland Retainer 4-Hole
- Pressure 2500 PSI max.
- Rod Dia. 1.125″
|
- Ports SAE 8 & 3/8″ NPT
- Retracted Length 31.5″
- Gland Face to Rod Pin Center 8.75″
- Shpg. 30 lbs.
|
| END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 2.5″
- Inside Width 1.14″
- Throat Depth 2.12″
- Pin Hole 1″
|
- Base End Clevis
- Outside Width 2.44″
- Inside Width 1.14″
- Throat Depth 2″
- Pin Hole 1″
|
