Description

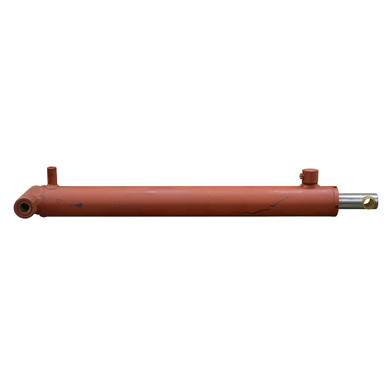

2″ X 18″ X 1.25″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder. Stamped T90623D in cylinder body.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2″ x 18″
- Barrel Thickness 0.1875″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.25″
|
- Extend Port 1/4″ NPT
- Retract Port SAE 4
- Retracted Length 26″
- Gland Face to Rod Pin Center 2.438″
- Shpg. 24 lbs.
|
| END MOUNTINGS |
|
- Rod End Thru-Hole
- Width 1.25″
- Pin Center to Base End 0.75″
- Pin Hole 0.75″
|
- Base End Cross-Tube
- O.D. 1.625″
- Width 5.456″
- Pin Hole 0.75″
|
