Description

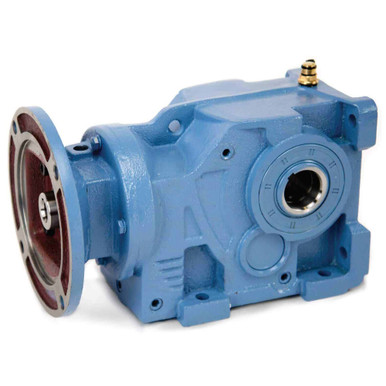

22.18:1 Size 67 6.26 HP Helical Bevel Gear Reducer WWE KHN67-20/1-H-182/4TC
Brand new, World Wide Electric helical bevel gear reducer.Cast iron housing.Gearbox flanges are designed to accept NEMA C-Face electric motors.Foot mounts for horizontal or vertical mounting, hollow output bore.Ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.Pre-filled with HD320 mineral oil.Single shaft and double shaft output kits available (sold separately).
SPECIFICATIONS
- Manufacturer World Wide Electric
- Model Number KHN67-20/1-H-182/4TC
- Box Size 67
- Gear Stages 3
- Nominal Ratio 20:1
- Actual Ratio 22.18:1
- Output RPM @ 1750 RPM Input 79 RPM
- Input HP 6.26 HP max.
- Output Torque 4530 in.-lbs. max.
- Over-Hung Load 1190 lbs. max.
- Motor Mount 182/4TC
- Output Bore 1-1/2″ Hollow Keyed, 3/8″ Keyway
- Horizontal Foot Mount Four 0.53″ holes on 5.51″ x 4.72″ centers
- Vertical Foot Mount Four 0.53″ holes on 5.51″ x 6.3″ centers
- Cross Reference SEW K67
- Size 13.86″x 9.0″ x 9.26″
- Shpg. 82 lbs.
