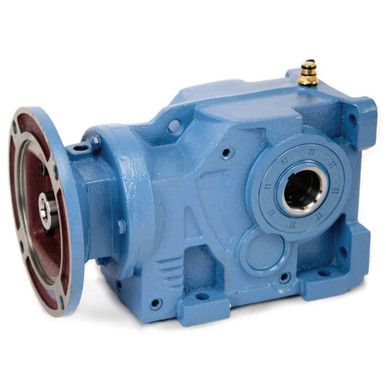

23.1:1 Size 37 2.2 HP Helical Bevel Gear Reducer WWE KHN37-25/1-H-143/5TC
Brand new, World Wide Electric helical bevel gear reducer.Cast iron housing.Gearbox flanges are designed to accept NEMA C-Face electric motors.Foot mounts for horizontal or vertical mounting, hollow output bore.Ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.Pre-filled with HD320 mineral oil.Single shaft and double shaft output kits available (sold separately).
SPECIFICATIONS
- Manufacturer World Wide Electric
- Model Number KHN37-25/1-H-143/5TC
- Box Size 37
- Gear Stages 3
- Nominal Ratio 25:1
- Actual Ratio 23.1:1
- Output RPM @ 1750 RPM Input 76 RPM
- Input HP 2.2 HP max.
- Output Torque 1659 in.-lbs. max.
- Over-Hung Load 505 lbs. max.
- Motor Mount 143/5TC
- Output Bore 1-1/4″ Hollow Keyed, 1/4″ Keyway
- Horizontal Foot Mount Four 0.433″ holes on 4.331″ x 3.937″ centers
- Vertical Foot Mount Four 0.433″ holes on 4.528″ x 3.937″ centers
- Cross Reference SEW K37
- Size 10.74″ x 6.5″ x 6.88″
- Shpg. 39 lbs.
