Description

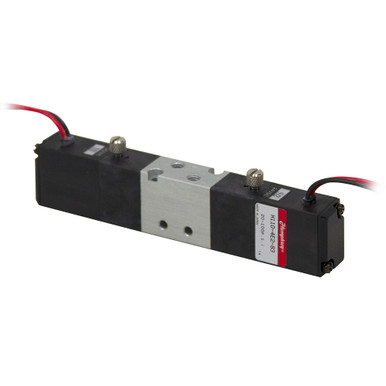

24 Volt DC 4-Way 2-Position Humphrey Solenoid Air Valve H110-4E2-83
SPECIFICATIONS
- Manufacturer Humphrey
- Model Number H110-4E2-83
- Type Internal pilot type
- Voltage 24 Volt DC
- Flow Coefficient (Cv) 0.23
- PSI Range 20-100
- Number of Solenoids 2
- Number of Positions 2
- Valve Function 4-Way 2-Position
- Number of Ports 5
- Ports A, B & P M5 X 0.8
- Ports R1 & R2 M5 X 0.8
- Mount Two 2.8mm dia. Thru holes on 20mm x 11mm centers
- Override Manual override Locking protruding type
- Electrical Connection Grommet type
- Included Accessories N/A
- Size 4.6875″ x 0.5625″ x 1.25″
- Shpg. 0.3 lbs.
