Description

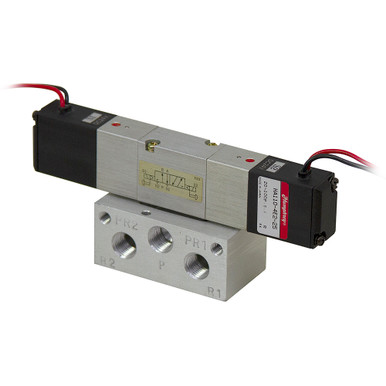

24 Volt DC 4-Way 2-Position Humphrey Solenoid Air Valve HA110-4E2-25
Pilot Ports M5 x 0.8
SPECIFICATIONS
- Manufacturer Humphrey
- Model Number HA110-4E2-25
- Type Internal pilot type
- Voltage 24 Volt DC
- Flow Coefficient (Cv) 0.23
- PSI Range 20-100
- Number of Solenoids 2
- Number of Positions 2
- Valve Function 4-Way 2-Position
- Number of Ports 5
- Ports A, B & P RC1/8 (BSPT)
- Ports R1 & R2 RC1/8 (BSPT)
- Mount Two 3.2mm dia. Thru holes on 24mm x 25mm centers
- Override Non-Lock type manual override
- Electrical Connection Grommet type
- Included Accessories N/A
- Size 4.625″ x 1.1875″ x 2″
- Shpg. 0.5 lbs.
