Description

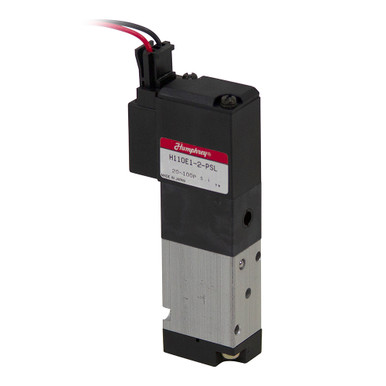

24 Volt DC Normally Closed (NC) Humphrey Solenoid Air Valve H110E1-2-PSL
Only 1 port, port a.The input is for a manifold mount.
SPECIFICATIONS
- Manufacturer Humphrey
- Model Number H110E1-2-PSL
- Type Internal pilot type
- Voltage 24 Volt DC
- Flow Coefficient (Cv) 0.23
- PSI Range 20-100
- Number of Solenoids 1
- Number of Positions 2
- Valve Function Normally Closed (NC)
- Number of Ports 2
- Ports A, B & P A Port = M5 x 0.8
- Ports R1 & R2 Manifold Mount
- Mount Two 2.8mm dia. Thru holes on 20mm x 11mm centers
- Override Non-Lock type manual override.Cannot be used as single unit.
- Electrical Connection Straight connector with LED indicator
- Included Accessories 2 Wire Connection, Mounting Hardware and Gasket
- Size 3 3/16″ x 9/16″ x 1 3/8″
- Shpg. 0.2 lbs.
