Name: 25:1 SCSMR2 Screw Conveyor Shaft Mount Reducer Worldwide SCSMR2-25/1
Brand: industrialgearsupply.com
SKU: 604164
Price: 112.39 USD
Availability: InStock

Description

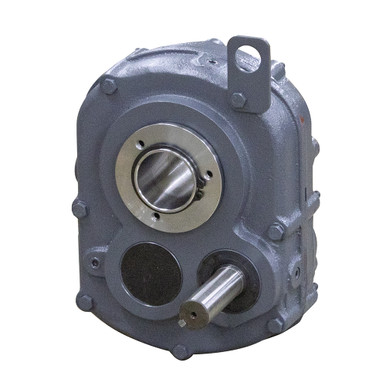

25:1 SHAFT MOUNT REDUCER
Brand new, WORLDWIDE ELECTRIC CORP Eliminator screw conveyor shaft mount reducers. Cast iron housing, high grade case hardened steel gears and shafts. Double lip seals. Metal reinforced double lips, spring loaded oil seals. Ball bearings. Tapered bushing output (bushing not included). Torque arm included. Suitable for screw conveyor applications when used with screw conveyor flange and drive shaft (Not included). Interchangeable with DODGE, HUB CITY, EDISON and BROWNING shaft mount reducers.

SPECIFICATIONS

Brand WORLDWIDE ELECTRIC CORP
Model SCSMR2-25/1
Ratio 25:1
Input Power see table below
Output see table below
Torque see table below
Input Shaft 1-1/8″ diam. X 3-9/16″ w/ 1/4″ keyway
Output Bore see table below
Size 8-3/8″ x 11-7/16″ x 5-7/8″
Shpg. 71 lbs.

Service Class I

Service Class II

Service Class III

HP	RPM	Torque	HP	RPM	Torque	HP	RPM	Torque
0.5	4-6	7065-4710 in-lbs	0.33	4-5	4663-3730 in-lbs	0.25	4-5	3532-2826 in-lbs
0.75	6-8	7065-5298 in-lbs	0.5	6-8	4710-3532 in-lbs	0.33	6-8	3108-2331 in-lbs
1	8-10	7065-5652 in-lbs	0.75	8-12	5298-3532 in-lbs	0.5	8-12	3532-2355 in-lbs
1.5	12-16	7065-5298 in-lbs	1	12-16	4710-3532 in-lbs	0.75	12-16	3532-2649 in-lbs
2	16-24	7065-4710 in-lbs	1.5	18-24	4710-3532 in-lbs	1	16-24	3532-2355 in-lbs
3	26-45	6521-3765 in-lbs	2	24-34	4710-3324 in-lbs	1.5	26-34	3261-2493 in-lbs
5	46-74	6143-3819 in-lbs	5	70-85	4462-2422 in-lbs	2	38-58	2975-1949 in-lbs
7.5	78-85	5434-4987 in-lbs	5	70-85	4037-3324 in-lbs	3	58-85	2923-1995 in-lbs

**OUTPUT BORE OPTIONS**
BORE	ITEM	BORE	ITEM
1-5/16″	602619	1-3/8″	602620
1-7/16″	602621	1-1/2″	602622
1-5/8″	602623	1-11/16″	602624
1-3/4″	602625	1-15/16″	602626
