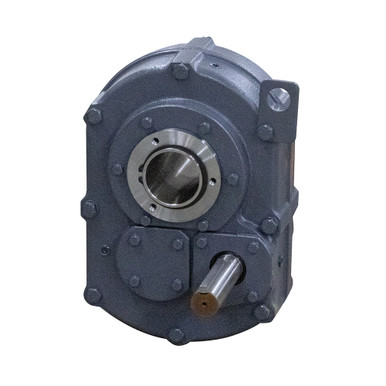

25:1 SCSMR4 Screw Conveyor Shaft Mount Reducer Worldwide SCSMR4-25/1

25:1 SCSMR4 Screw Conveyor Shaft Mount Reducer Worldwide SCSMR4-25/1

Original price was: $1,348.95.Current price is: $269.79.

SKU: 604170 Category:

Description

25:1 SHAFT MOUNT REDUCER
Brand new, WORLDWIDE ELECTRIC CORP Eliminator screw conveyor shaft mount reducers. Cast iron housing, high grade case hardened steel gears and shafts. Double lip seals. Metal reinforced double lips, spring loaded oil seals. Ball bearings. Tapered bushing output (bushing not included). Torque arm included. Suitable for screw conveyor applications when used with screw conveyor flange and drive shaft (Not included). Interchangeable with DODGE, HUB CITY, EDISON and BROWNING shaft mount reducers.

SPECIFICATIONS

  • Brand WORLDWIDE ELECTRIC CORP
  • Model SCSMR4-25/1
  • Ratio 25:1
  • Input Power see table below
  • Output see table below
  • Torque see table below
  • Input Shaft 1-7/16″ diam. X 5-9/16″ w/ 3/8″ keyway
  • Output Bore see table below
  • Size 10-3/8″ x 15-1/8″ x 8-3/16″
  • Shpg. 190 lbs.
Service Class I

Service Class II

Service Class III

HP RPM Torque HP RPM Torque HP RPM Torque
1 4-5 14129-11303 in-lbs 0.75 4-5 10597-8477 in-lbs 0.5 4-5 7065-5658 in-lbs
1.5 5-7 16955-12111 in-lbs 1 5-6 11303-9419 in-lbs 0.75 5-6 8477-7065 in-lbs
2 6-8 18836-14129 in-lbs 1.5 6-8 14129-10597 in-lbs 1 6-8 9419-7065 in-lbs
3 10-14 16955-12111 in-lbs 2 10-12 11303-9419 in-lbs 1.5 10-12 8477-7065 in-lbs
5 16-24 17661-11774 in-lbs 3 14-22 12111-7707 in-lbs 2 14-18 8074-6280 in-lbs
7.5 26-34 16303-12467 in-lbs 5 24-34 11774-8311 in-lbs 3 20-34 8477-4987 in-lbs
10 38-54 14873-10466 in-lbs 7.5 38-54 11154-7849 in-lbs 5 38-54 7436-5233 in-lbs
15 58-80 14616-10597 in-lbs 10 54-85 10466-6649 in-lbs 7.5 58-85 7308-4987 in-lbs
20 80-85 14129-13298 in-lbs – – – – – –
OUTPUT BORE OPTIONS
BORE ITEM BORE ITEM
 1-15/16″ 602633  2″ 602634
 2-3/16″ 602638  2-1/4″ 602636
 2-7/16″ 602637
OTHER OPTIONS
 MOTOR MOUNT 602611
 BELT GUARD 602653
 SCREW CONVEYOR FLANGE 602882
 SCREW CONVEYOR DRIVE SHAFT 603007
