Description

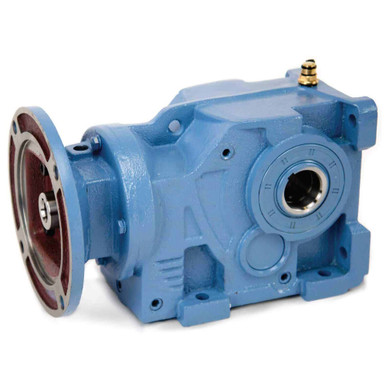

28.3:1 Size 87 20.93 HP Helical Bevel Gear Reducer WWE KHN87-30/1-H-213/5TC
Brand new, World Wide Electric helical bevel gear reducer.Cast iron housing.Gearbox flanges are designed to accept NEMA C-Face electric motors.Foot mounts for horizontal or vertical mounting, hollow output bore.Ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.Pre-filled with HD320 mineral oil.Single shaft and double shaft output kits available (sold separately).
SPECIFICATIONS
- Manufacturer World Wide Electric
- Model Number KHN87-30/1-H-213/5TC
- Box Size 87
- Gear Stages 3
- Nominal Ratio 30:1
- Actual Ratio 28.3:1
- Output RPM @ 1750 RPM Input 62 RPM
- Input HP 20.93 HP max.
- Output Torque 19330 in.-lbs. max.
- Over-Hung Load 2450 lbs. max.
- Motor Mount 213/5TC
- Output Bore 2-3/8″ Hollow Keyed, 5/8″ Keyway
- Horizontal Foot Mount Four 0.87″ holes on 7.09″ x 7.09″ centers
- Vertical Foot Mount Four 0.87″ holes on 7.09″ x 9.17″ centers
- Cross Reference SEW K87
- Size 20.26″ x 9.0″ x 13.39″
- Shpg. 236 lbs.
