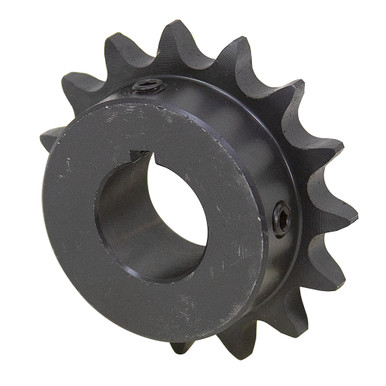

50 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new. ANSI standard 50 pitch roller chain sprocket. Bored to size. One-piece carbon steel forged construction with hardened teeth and black oxide finish. Two set screws. Set screws are located directly over the keyway and 90° from keyway. Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 50
- Number of Teeth 28
- Bore Size 1-1/4″
- Model Number S50BS28H-INS
- Outside Diameter 5.92″
- Hub Diameter 3″
- Hub Type B (Hub on one side)
- Length Through Bore 1-1/4″
- Keyway Size 5/16″ wide x 5/32″ depth
- Shpg. 4 lbs.
