Description

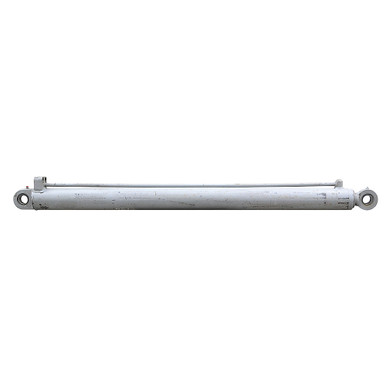

3.151″(80mm) x 48″(1219.2mm) x 1.965″(50mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.151″(80mm) x 48″(1219.2mm)
- Gland Retainer Snap Ring
- Pressure 2500 PSI max.
- Rod Dia. 1.965″(50mm)
|
- Ports BSSP 10
- Retracted Length 57.5″
- Gland Face to Rod Pin Center 2.25″
- Shpg. 104 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 1.193″
- Pin-Center-To-Swivel Eye-End 1.7275″
- Swivel Eye Width 1″
- Pin Hole 1.375″
|
- Base End Swivel Eye
- Width 1.197″
- Pin-Center-To-Swivel Eye-End 1.7515″
- Swivel Eye Width 1″
- Pin Hole 1.375″
|
