Description

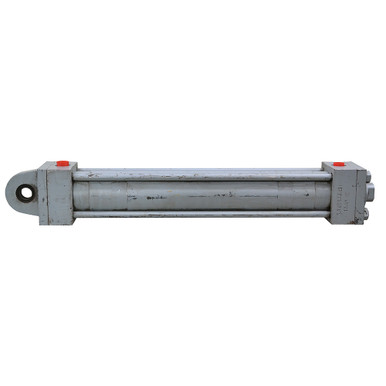

3.16″(80mm) x 20″(510mm) x 1.773″(45mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Tie-rod, double acting hydraulic cylinder, stamped 3.1203.17.211 12.84.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.16″(80mm) x 20″(510mm)
- Gland Retainer 4-Hole
- Pressure 2500 PSI max.
- Rod Dia. 1.773″(45mm)
|
- Ports SAE 8
- Retracted Length 29.875″
- Gland Face to Rod Pin Center 0.875″
- Shpg. 84 lbs.
|
| END MOUNTINGS |
- Rod End Threaded
- Thread M22 x 2.0 pitch x 50mm long
|
- Base End Swivel Eye
- Width 0.989″
- Pin-Center-To-Swivel Eye-End 1.75″
- Swivel Eye Width 0.75″
- Pin Hole 0.987″(25mm)
|
