Description

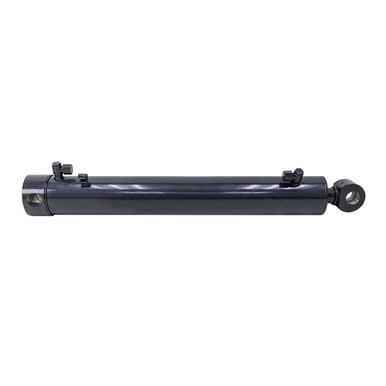

3.25″ x 21.375″ x 1.5″ DOUBLE ACTING HYDRAULIC CYLINDER
New, Bobcat 7104122 welded double acting hydraulic boom cylinder. Model compatiblity: Backhoe Loaders B250 & BL275, Attachments 9BH BACKHOE & 730SH BACKHOE.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.25″ x 21.375″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.5″
|
- Ports JIC 8
- Accessory Ports SAE 6
- Retracted Length 29.5″
- Gland Face to Rod Pin Center 2.5″
- Shpg. 52 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 2″
- Pin-Center-To-Tang-End 1.167″
- Pin Hole 1.25″
|
- Base End Thru-Hole
- Width 3.875″
- Pin Center to Base End 1.163″
- Pin Hole 1.25″
|
