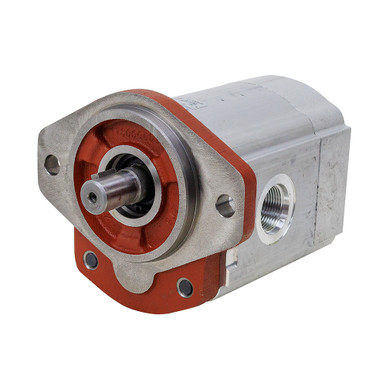

3.3 cu in Hydraulic Gear Pump Wolverine by Prince Mfg. WPC55A6R-RD

Description

3.3 CU IN WOLVERINE WPC55A6R-RD HYDRAULIC PUMP
New, Wolverine by Prince Mfg. WPC55A6R-RD gear pump with rear pump mount. Reversible gear sets, cast iron front and back covers. Can be used as driven front pump in a multi-pump configuration.

SPECIFICATIONS

• Manufacturer Wolverine by Prince Mfg.
• Model WPC55A6R-RD
• Disp. 3.3 cu. in. / rev.
• Pump Type Gear
• Rotation CW
• Pressure: 3200 PSI Continuous
• Speed: 2500 RPM Max.
• Flow:
     6.07 GPM @ 500 RPM
     12.85 GPM @ 1000 RPM
     19.71 GPM @ 1500 RPM
     26.28 GPM @ 2000 RPM
     33.21 GPM @ 2500 RPM
• Mount 2 Bolt SAE B
• Shaft 7/8″ dia. x 1-39/64″ w/ 1/4″ Key
• Rear Pump Mount 2 Bolt SAE A, with 3/8″-16 TPI tapped holes
• Rear Pump Input Bore 5/8″ dia. 9T Spline
• Rqd. Filtration Code level 17/14/15 micron filtration for full PSI recommended
• Inlet Port SAE 20
• Outlet Port SAE 16
• Size 8-3/8″ x 6-7/8″ x 6″
• Shpg. 26 lbs.
