Description

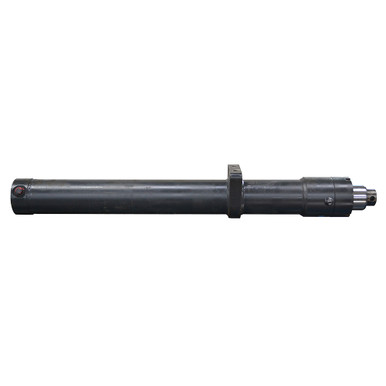

2.954″(75mm) x 30.125″(765mm) x 2.954″(75mm) SA DISPLACEMENT HYD CYL
Unused old inventory. Welded, single acting displacement hydraulic cylinder with bleeder valve. Base end has a 0.828″(21mm) O.D. x 0.522″ deep hole.
| SPECIFICATIONS |
- Single Acting
- Bore x Stroke 2.954″(75mm) x 30.125″(765mm)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.954″(75mm)
|
- Ports BSPP G 1/2″-14
- Retracted Length 14.854″
- Gland Face to Rod Pin Center 2.25″
- Shpg. 154 lbs.
|
| END MOUNTINGS |
|
- Rod End Thru-Hole
- Width 1.966″
- Pin Center to Base End 0.521″
- Pin Hole 0.563″(14mm)
|
- Base End Mounting plate
- Plate Dimensions5.72″ long x 1.268″ thick
- Mount Holes Two, 0.75″ O.D. on 4.5″ centers
- Tapped Holes Two, M14-1.5 x 30mm on 2.375″ centers
|
