Description

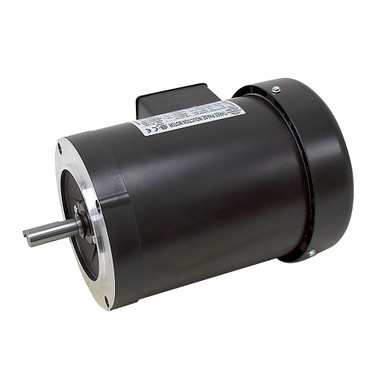

3/4 HP 1725 RPM 3 PHASE 230/460 VOLT AC FACE MOUNT MOTOR
Brand new, WORLDWIDE NAT34-18-56CRD, general purpose 3-phase motor for use in blowers, pumps, conveyors, and many other diverse applications. Totally Enclosed Fan Cooled (TEFC) enclosures.
SPECIFICATIONS
- Brand Worldwide
- Model Number NAT34-18-56CRD
- Power 3/4 HP
- Voltage 230/460 AC
- Phase 3
- Frequency 60 Hz
- Amperage 2.6/1.3 Amps
- Speed 1725 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection None
- Enclosure TEFC
- Duty Continuous
- Frame 56
- Face Mount Four 3/8″-16 threaded holes on 5-7/8″ B.C., 4-1/2″ pilot
- Shaft 5/8″ dia. x 1-7/8″ overall length w/ 3/16″ wide x 1-3/4″ long keyway
- Size 11.5″ x 8.75″ x 7.25″
- Shpg. 26 lbs.
