Description

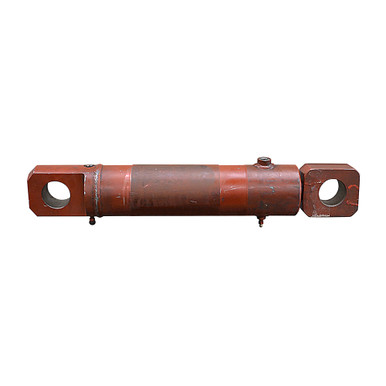

3.483″(90mm) x 11″(279mm) x 1.778″(45mm) HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, stamped 1575813.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.483″(90mm) x 11″(279mm)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.778″(45mm)
|
- Ports BSPP 6
- Retracted Length 23.625″
- Gland Face to Rod Pin Center 3″
- Shpg. 84 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 2.363″
- Pin-Center-To-Tang-End 2.377″
- Pin Hole 2.367″(60mm)
|
- Base End Tang
- Width 2.359″
- Pin-Center-To-Tang-End 2.378″
- Pin Hole 2.367″(60mm)
|
