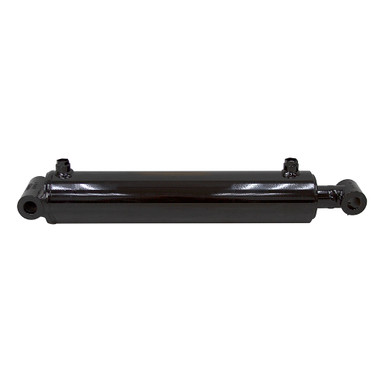

3.5" x 16" x 1.75" Double Acting Hydraulic Cylinder Monarch Industries 675234 35WD16-175

3.5″ x 16″ x 1.75″ Double Acting Hydraulic Cylinder Monarch Industries 675234 35WD16-175

Original price was: $189.95.Current price is: $47.49.

SKU: 905970 Category:

Description

3.5″ x 16″ x 1.75″ HYDRAULIC CYLINDER
New. MONARCH INDUSTRIES 675234 35WD16-175, welded, double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.5″ x 16″
  • Gland Retainer Snap ring
  • Pressure 3000 PSI max.
  • Rod Dia. 1.75″
  • Rod Thickness 1.75″
  • Ports SAE 8
  • Retracted Length 24″
  • Gland Face to Rod Pin Center 2.875″
  • Shpg. 46 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 1.992″
  • Width 2.5″
  • Pin Hole 1″
  • Base End Cross-Tube
  • O.D. 1.976″
  • Width 4″
  • Pin Hole 1″
