3.5" x 25.75" x 1.75" Double Acting Hydraulic Cylinder Clark Equipment 2523230

3.5″ x 25.75″ x 1.75″ Double Acting Hydraulic Cylinder Clark Equipment 2523230

Original price was: $159.95.Current price is: $39.99.

SKU: 906197 Category:

Description

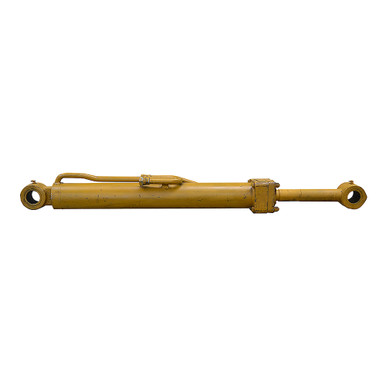

3.5″ x 25.75″ x 1.75″ HYDRAULIC CYLINDER
Unused old inventory. CLARK EQUIP. CO. 2523230, welded, double acting hydraulic.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.5″ x 25.75″
  • Gland Retainer Bolt-on
  • Pressure 2500 PSI max.
  • Rod Dia. 1.75″
  • Ports JIC 12
  • Retracted Length 50.75″
  • Gland Face to Rod Pin Center 12.625″
  • Shpg. 116 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 2.779″
  • Pin-Center-To-Tang-End 2.229″
  • Pin Hole 2″
  • Base End Tang
  • Width 2.706″
  • Pin-Center-To-Tang-End 2.046″
  • Pin Hole 2″
