Sale!

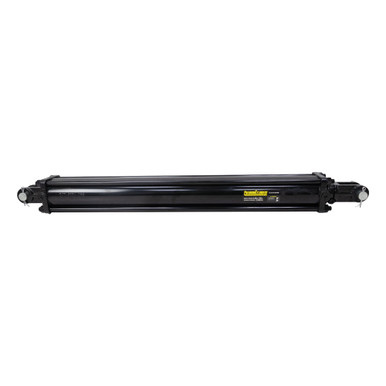

3.5" x 30" x 1.5" Tie-rod Double Acting Hydraulic Cylinder Premium Supply PCT3530ORB

3.5″ x 30″ x 1.5″ Tie-rod Double Acting Hydraulic Cylinder Premium Supply PCT3530ORB

Original price was: $199.95.Current price is: $49.99.

SKU: 907142 Category:

Description

3.5″ x 30″ x 1.5″ DOUBLE ACTING HYDRAULIC CYLINDER
New Premium Supply PCT3530ORB tie-rod double acting hydraulic cylinder. Features a ductile iron precision machined piston providing a malleable bearing surface for extended cylinder life and a high tensile steel, hard chrome plated rod providing extended cylinder life in harsh applications.

SPECIFICATIONS
  • Brand Premium Supply
  • Model Number PCT3530ORB
  • Double Acting
  • Bore x Stroke 3.5″ x 30″
  • Gland Retainer Tie-rod
  • Pressure 2500 PSI max.
  • Rod Dia. 1.5″
  • Column Load 24053 lbs.
  • Ports SAE 8
  • Retracted Length 40.25″
  • Gland Face to Rod Pin Center 3.5″
  • Shpg. 67 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 2.625″
  • Inside Width 1.125″
  • Throat Depth 2.125″
  • Pin Hole 1″
  • Rod End Clevis
  • Outside Width 2.5″
  • Inside Width 1.125″
  • Throat Depth 2.06″
  • Pin Hole 1″
