Description

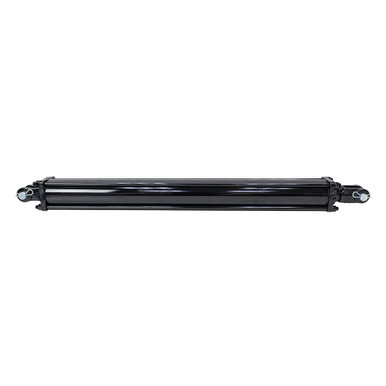

3.5″ x 36″ x 1.5″ DOUBLE ACTING HYDRAULIC CYLINDER
New, Hydro Custom CYL035-036-0150-B200 tie-rod double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.5″ x 36″
- Gland Retainer 4-Hole
- Pressure 2500 PSI max.
- Rod Dia. 1.5″
|
- Ports SAE 8
- Retracted Length 46.5″
- Gland Face to Rod Pin Center 3.5″
- Shpg. 83 lbs.
|
| END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 2.57″
- Inside Width 1.24″
- Throat Depth 2.125″
- Pin Hole 1″
|
- Base End Clevis
- Outside Width 2.7″
- Inside Width 1.28″
- Throat Depth 2″
- Pin Hole 1″
|
