Description

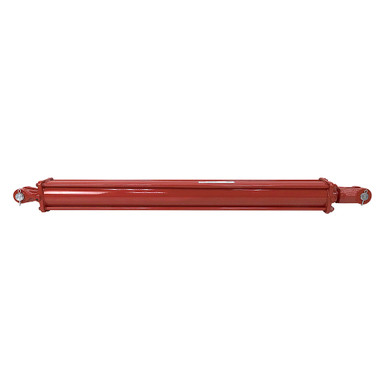

3.5″ x 36″ x 1.5″ DOUBLE ACTING TIE-ROD HYDRAULIC CYLINDER
New, Lion 661175-P 35TX36-150NPT, tie-rod, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.5″ x 36″
- Gland Retainer 4-Hole
- Pressure 2500 PSI max.
- Rod Dia. 1.5″
|
- Ports 1/2″ NPT
- Retracted Length 46″
- Gland Face to Rod Pin Center 3.75″
- Shpg. 59 lbs.
|
| END MOUNTINGS |
- Rod End Clevis
- Outside Width 2.65″
- Inside Width 1.1″
- Throat Depth 2.125″
- Pin Hole 1.00″
|
- Base End Clevis
- Outside Width 2.43″
- Inside Width 1.19″
- Throat Depth 2″
- Pin Hole 1.00″
|
