Description

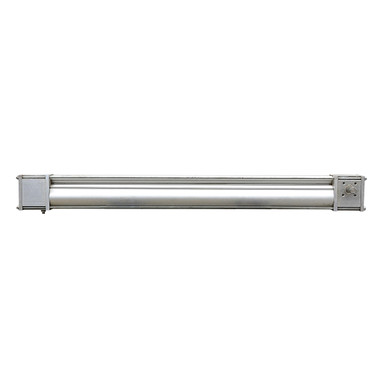

360° PNEUMATIC ROTARY ACTUATOR
Unused old inventory. Double acting pneumatic rotary actuator. Rota-Cyl Deltrol Fluid Products numbers on cylinder AC 3.5 x 1800°
SPECIFICATIONS
- Rotation Reversible
- Bore Size 3.5″
- Torque 900 in-lb
- Angle of Shaft Rotation 360°
- Number of Revolutions 5
- Pressure 100 PSI
- Shaft 1″ dia. x 2.5″ long w/ 1/4″ keyway
- Mounting Four, 3/8″-24 drilled and tapped holes 0.55″ deep on 1.73″ centers
- Ports 3/8″ NPT
- Dimensions 52″ x 7″ x 6″
- Shpg. 40 lbs.
