Description

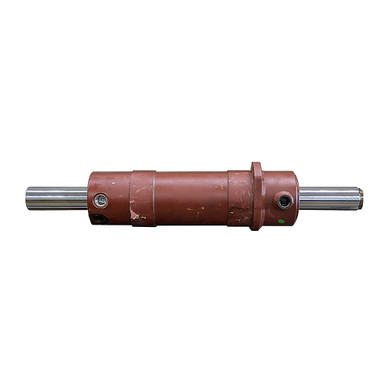

3.536″(90MM) x 9.25″(235MM) x 1.769″(45MM) DOUBLE ACTING DOUBLE ROD HYDRAULIC CYLINDER
Unused old inventory. Clark-Hurth 21224.633.04, welded, double acting, double rod hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.536″(90MM) x 9.25″(235MM)
- Gland Retainer Snap ring
- Pressure 2500 PSI max.
- Rod Dia. 1.769″(45MM)
|
- Ports M18 x 1.5
- Retracted Length 24″
- Gland Face to Rod Pin Center 4.625″
- Shpg. 41 lbs.
|
| END MOUNTINGS |
- Rod End Tapped
- Thread size-Pitch M26 x 1.5
- Thread Depth 2.365″
|
- Base End Tapped
- Thread size-Pitch M26 x 1.5
- Thread Depth 2.365″
|
