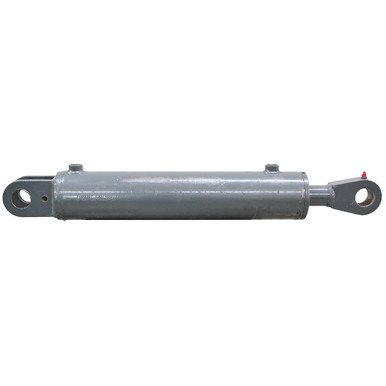

3.5"(89mm) x 14.25"(362mm) x 1.769"(45mm) Double Acting Hydraulic Cylinder

3.5″(89mm) x 14.25″(362mm) x 1.769″(45mm) Double Acting Hydraulic Cylinder

Original price was: $149.95.Current price is: $37.49.

SKU: 905997 Category:

Description

3.5″(89mm) x 14.25″(362mm) x 1.769″(45mm) HYD CYL
Unused old inventory. Welded, double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.5″(89mm) x 14.25″(362mm)
  • Gland Retainer Threaded in
  • Pressure 2500 PSI max.
  • Rod Dia. 1.769″(45mm)
  • Ports SAE 8
  • Retracted Length 48″
  • Gland Face to Rod Pin Center 4.875″
  • Shpg. 51 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 1.508″
  • Pin-Center-To-Tang-End 1.490″
  • Pin Hole 1.5″
  • Base End Clevis
  • Outside Width 2.636″
  • Inside Width 1.625″
  • Throat Depth 4.064″
  • Pin Hole 1.5″
