Description

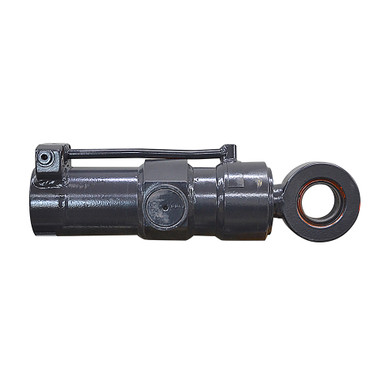

3.847″(100mm) x 7.75″(197mm) x 2.2″(55mm) HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, stamped 6677065.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.847″(100mm) x 7.75″(197mm)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.2″(55mm)
|
- Ports BSPP 6
- Retracted Length 10″
- Gland Face to Rod Pin Center 3.25″
- Shpg. 82 lbs.
|
| END MOUNTINGS |
|
- Rod End Swivel Eye
- Width 2.003″
- Pin-Center-To-Swivel Eye-End 2.63″
- Swivel Eye Width 1.75″
- Pin Hole 2.358″(60mm)
|
- Rod End Male Trunnion
- Pin Outside/Inside Width 8.125″ / 5.75″
- Pin-Center-To-Rod Pin Center 10″
- Pin Center To Base End 8.5″
- Pin Dia. 2.759″(70mm)
|
