Description

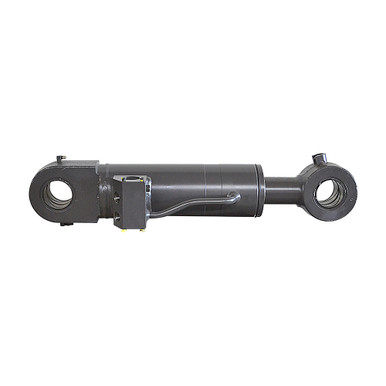

3.874″(100MM) x 7.25″(184MM) x 2.366″(60MM) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Volvo 1180026, welded, double acting, hydraulic cylinder. Unknown cartridge valve.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.874″(100MM) x 7.25″(184MM)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.366″(60MM)
|
- Ports 3/8″ NPT
- Retracted Length 22.5″
- Gland Face to Rod Pin Center 5.75″
- Shpg. 86 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 2.903″
- Pin-Center-To-Tang-End 2.429″
- Pin Hole 2.366″(60MM)
|
- Base End Tang
- Width 2.943″
- Pin-Center-To-Tang-End 2.397″
- Pin Hole 2.366″(60MM)
|
