Description

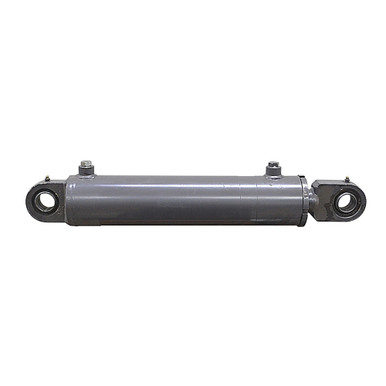

3.886″(100MM) x 14.75″(375MM) x 1.965″(50MM) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory, Volvo Construction Equipment 12739279, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.886″(100MM) x 14.75″(375MM)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.965″(50MM)
|
- Ports SAE 8
- Retracted Length 27″
- Gland Face to Rod Pin Center 3.75″
- Shpg. 70 lbs.
|
| END MOUNTINGS |
|
- Rod End Swivel Eye
- Width 1.522″
- Pin-Center-To-Swivel Eye-End 1.845″
- Swivel Eye Width 1.625″
- Pin Hole 1.575″(40MM)
|
- Base End Swivel Eye
- Width 1.5″
- Pin-Center-To-Swivel Eye-End 1.794″
- Swivel Eye Width 1.625″
- Pin Hole 1.575″(40MM)
|
