Description

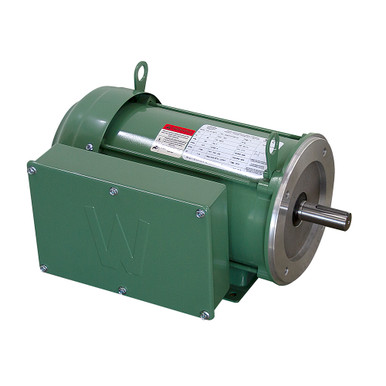

3 HP 1769 RPM 230 VOLT AC BASE AND FACE MOUNT MOTOR
Brand new, WORLDWIDE FD3-18-184TC, farm duty heavy duty motor for agricultural and other industrial use. Totally Enclosed Fan Cooled (TEFC) enclosures suitable for indoor or outdoor protection. Capacitor start/capacitor run motor for reduced amperage and high torque. Manual thermal overload protection.
SPECIFICATIONS
- Brand Worldwide
- Model Number FD3-18-184TC
- Power 3 HP
- Voltage 230 AC
- Phase 1
- Frequency 60 Hz
- Amperage 12.5 Amps
- Speed 1769 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection Manual
- Enclosure TEFC
- Duty Continuous
- Frame 184TC
- Base Mount Eight 3/8″ holes on 1″ to 4″ to 5″ x 7-1/2″ centers
- Face Mount Four 1/2″-13 TPI threaded holes in motor face on 7-1/4″ B.C., 5-3/4″ pilot
- Shaft 1-1/8″ dia. x 2-7/8″ overall length w/ 1/4″ wide x 1-3/4″ long keyway
- Size 18″ x 12.5″ x 10.75″
- Shpg. 126 lbs.
