Description

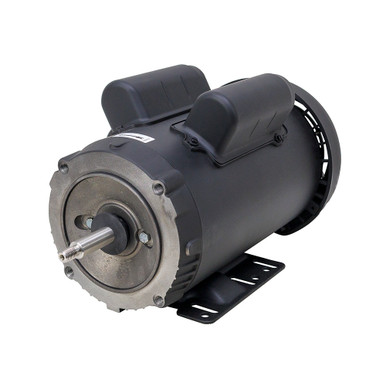

3 HP 3490 RPM MOTOR
New, WEG model 24366-SHU capacitor-start, capacitor-run motor. Stainless steel shaft. Thermal overload protection.
SPECIFICATIONS
- Brand WEG
- Model Number 24366-SHU
- Power 3 HP
- Voltage 208-230 Volt AC
- Phase 1
- Frequency 60 Hz
- Amperage 14.00-12.70 Amps
- Speed 3490 RPM
- Rotation CCW
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection Automatic
- Enclosure TEFC
- Duty Continuous
- Frame 56HJ
- Base Mount Six 1-1/8″ x 5/16″ elliptical slots on 4-7/8″ x 2″ x 5″ centers
- Face Mount Four 3/8″-16 threaded holes in motor face on 5-7/8″ B.C., 4-1/2″ pilot
- Shaft 5/8″ dia. x 2-1/2″ overall length w/ 7/16″-20 x 5/8″ threaded end
- Size 16″ x 10.25″ x 8.25″
- Shpg. 51 lbs.
