Description
DIRECTIONAL CONTROL VALVE

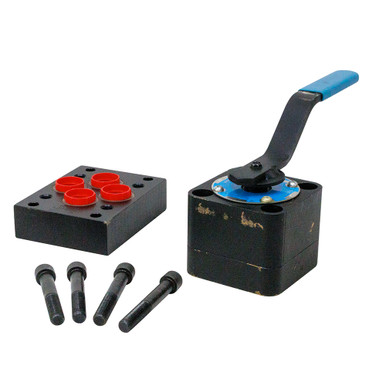

Old unused inventory, Teledyne Republic Manufacturing 8093E-10WS2 LO-TORQ 3-way manual directional control valve with sub-plate. Designed for accumulator applications. Full flow, noninterflow characteristics, which makes the valve perfect for boom or back-loaded applications. Features low turning torque and high tolerance to contamination.(Surface rust from warehouse storage).
SPECIFICATIONS
- Brand Teledyne Republic Manufacturing
- Valve Model Number 8093E-10WS2
- Series 8000E
- Sub-plate Model Number 822-3-10
- Pressure Rating 3000 PSI
- Porting Sub-plate
- Sub-plate Ports SAE 10
- Body Material Steel
- Temperature Range -65°F to 160°F
- Mounting Four 0.38″ dia. thru-holes on 4-3/16″ x 2-1/2″ centers
- Size 9″ x 5-1/2″ x 4″
- Shpg 18 lbs.
