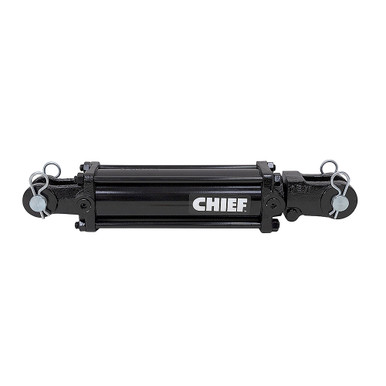

3" x 10" x 1.25" Double Acting Hydraulic Cylinder Chief 211349

3″ x 10″ x 1.25″ Double Acting Hydraulic Cylinder Chief 211349

Original price was: $174.30.Current price is: $43.58.

SKU: 906522 Category:

Description

CHIEF DOUBLE ACTING TIE-ROD CYLINDER
Brand new, Chief TC3 tie-rod hydraulic cylinder rated at 3000 PSI. TC3 cylinders are designed for use in a variety of double-acting applications including agricultural, compact construction and transportation equipment as well as waste and recycling. They provide outstanding performance and use clevis mounts for easy hookup. Featuring SAE O-ring ports for easy hookup every Chief TC3 cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.

SPECIFICATIONS
  • Brand Chief
  • Model Number 211349
  • Type Double-Acting
  • Bore x Stroke 3″ x 10″
  • Pressure 3000 PSI
  • Rod Dia. 1.25″
  • Column Load 21200 lbs.
  • Ports SAE 8
  • Retracted Length 20.25″
  • Shpg. 32 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 2.5″
  • Inside Width 1.17″
  • Throat Depth 2.125″
  • Pin Hole 1.00″
  • Base End Clevis
  • Outside Width 2.5″
  • Inside Width 1.17″
  • Throat Depth 2.00″
  • Pin Hole 1.00″
