Description

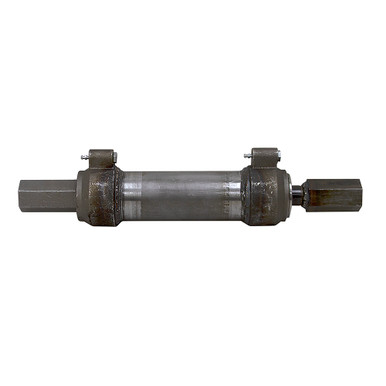

3″ x 10″ x 1.375″ HYD CYL
New. MONARCH INDUSTRIES 647505 30WR10-137, welded, double acting hydraulic cylinder. Bleeder valve on ports.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3″ x 10″
- Gland Retainer Snap ring
- Pressure 2500 PSI max.
- Rod Dia. 1.375″
|
- Ports SAE 6
- Retracted Length 23″
- Gland Face to Rod Pin Center 4.75″
- Shpg. 34 lbs.
|
| END MOUNTINGS |
|
- Rod End Tapped
- Thread size-Pitch 1-1/4″-12 TPI
- Thread Depth 2.978″
|
- Base End Tapped
- Thread size-Pitch 1-1/4″-12 TPI
- Thread Depth 3.329″
|
