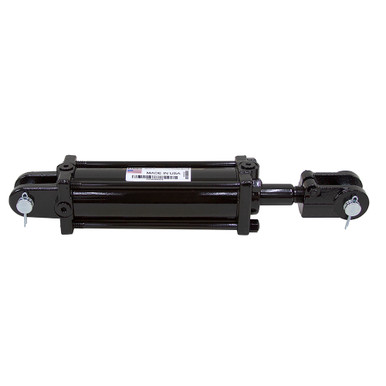

Name: 3" x 10" x 1.375" Double Acting Hydraulic Cylinder Prince F300100ABAAA07B
Brand: industrialgearsupply.com
SKU: 905201
Price: 64.80 USD
Availability: InStock

3″ x 10″ x 1.375″ Double Acting Hydraulic Cylinder Prince F300100ABAAA07B

SKU: 905201 Category: hot sale

Description

PRINCE DOUBLE ACTING TIE-ROD CYLINDER
Brand new, PRINCE tie-rod hydraulic cylinder. Premium quality with superior materials and workmanship. Chrome rod, high quality seals and steel components. Aircraft quality two-part polyester urethane paint.

SPECIFICATIONS
Brand PRINCE Model Number F300100ABAAA07B Type Double-Acting Bore x Stroke 3″ x 10″ Pressure 3000 PSI	Rod Dia. 1.375″ Column Load 21210 lbs. Ports SAE 8 Retracted Length 20.25″ Shpg. 34 lbs.
END MOUNTINGS
Rod End Clevis Outside Width 2.50″ Inside Width 1.06″ Throat Depth 1.8125″ Pin Hole 1.00″	Base End Clevis Outside Width 2.375″ Inside Width 1.06″ Throat Depth 1.875 “ Pin Hole 1.00″
