Description

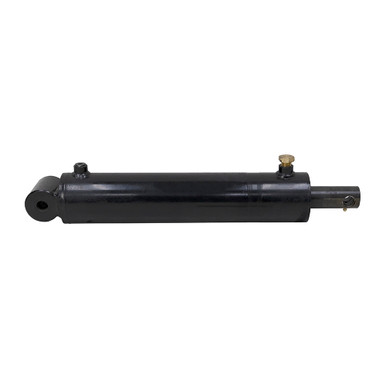

3″ x 12″ x 1.5″ SINGLE ACTING HYDRAULIC CYLINDER
New, Bailey 321-455 welded, single acting, extend only, hydraulic cylinder. Air breather included.
| SPECIFICATIONS |
- Single Acting
- Bore x Stroke 3″ x 12″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.5″
|
- Ports SAE 6
- Retracted Length 20″
- Gland Face to Rod Pin Center 2.75″
- Shpg. 30 lbs.
|
| END MOUNTINGS |
- Rod End Thru-Hole
- Width 1.385″
- Pin Center to Base End 0.75″
- Pin Hole 0.75″
|
- Base End Cross-Tube
- O.D. 3″
- Width 2.2″
- Pin Hole 0.75″
|
