Description

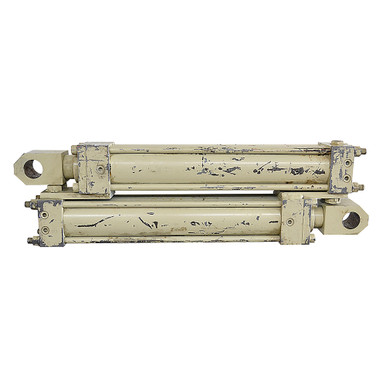

3″ x 15.5″ x 2″ DOUBLE ACTING TANDEM HYDRAULIC CYLINDER
Unused old inventory. Tie-rod, double acting tandem hydraulic cylinder, labeled 223139. Both cylinders have two non-adjustable cartridge valves, SPC2-10/P-0-25/817, one on each end of both cylinders.
| SPECIFICATIONS |
- Double Acting, Tandem
- Bore x Stroke 3″ x 15.5″
- Gland Retainer 4-Hole
- Pressure 2500 PSI max.
- Rod Dia. 2″
|
- Ports 3/8″ NPT
- Retracted Length 25.125″
- Overall Length 29″
- Gland Face to Rod Pin Center 3.625″
- Shpg. 123 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 2.5″
- Pin-Center-To-Tang-End 1.51″
- Pin Hole 1.5″
|
- Rod End Tang
- Width 2.5″
- Pin-Center-To-Tang-End 1.51″
- Pin Hole 1.5″
|
