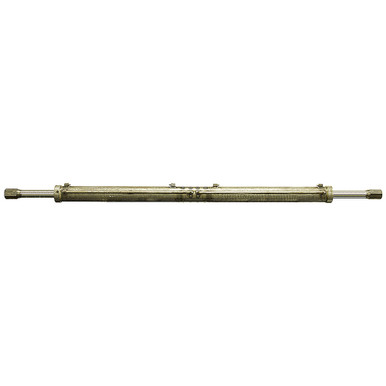

3″ x 16″ x 1.75″ DOUBLE ACTING TANDEM HYDRAULIC CYLINDER
Unused, old inventory. Two independent 3″ x 16″ x 1.75″ welded cylinders with thread-on gland caps joined in the middle. Four SUN model CACA-LHN adjustable, atmospherically-referenced, vented counterbalance valves with 3:1 pilot ratio and 15 gpm capacity. Each cylinder has four bleeder valves welded to barrel, one at each rod end and one on each side of work ports. Stamped “RMT 420969.” Retracted length measured end to end.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3″ x 16″
- Barrel Thickness 3/16″
- Pressure 2500 PSI max.
- Rod Dia. 1-3/4″
|
- Ports SAE 6, See Above
- Retracted Length 92-1/2″
- Shpg. 190 lbs.
|
| END MOUNTINGS |
|
- Rod Ends Tapped
- Thread size-Pitch 1-1/8″-12
- Thread Depth 3″
|
|
