3" x 27.31" x 1.75" Double Acting Hydraulic Cylinder Bailey 323-703

3″ x 27.31″ x 1.75″ Double Acting Hydraulic Cylinder Bailey 323-703

Original price was: $149.95.Current price is: $37.49.

SKU: 906438 Category:

Description

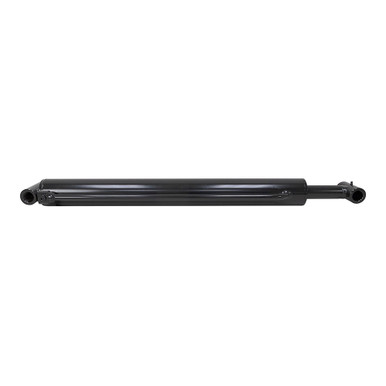

3″ x 27.31″ x 1.75″ DOUBLE ACTING HYDRAULIC CYLINDER
New, Bailey 323-703, welded, double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3″ x 27.31″
  • Gland Retainer Threaded in
  • Pressure 4000 PSI max.
  • Rod Dia. 1.75″
  • Ports SAE 8
  • Retracted Length 39.38″
  • Gland Face to Rod Pin Center 5.4″
  • Shpg. 66 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 2″
  • Width 4″
  • Pin Hole 1.25″
  • Base End Cross-Tube
  • O.D. 2″
  • Width 4.75″
  • Pin Hole 1.25″
