Description

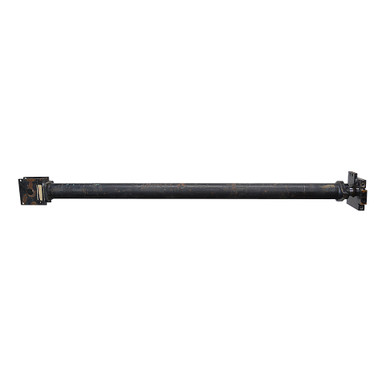

3″ x 54.375″ x 2″ HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, stamped 660516. Common ports and manifold with sliding check valve in rod end.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3″ x 54.375″
- Gland Retainer Welded
- Pressure 2500 PSI max.
- Rod Dia. 2″ Hollow
- Rod Thickness 0.25″
|
- Ports SAE 6
- Retracted Length 72.5″
- Gland Face to Rod Pin Center 2.75″
- Shpg. 166 lbs.
|
| END MOUNTINGS |
- Rod End Flat
- Dimensions 8″ x 6.5″ x 1.25″
- Mounting Two threaded 1/2″-13 TPI holes on 2.5″ centers
|
- Base End Clevis
- Outside Width 2.764″
- Inside Width 2.136″
- Throat Depth 6″
- Pin Hole 1.5″
|
